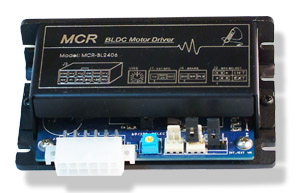

Brushless (BLDC) Motor Driver V3.0
(Flat torque feedback)
Compact PCB size as business card.
Order part No:MCR-BL2406A
Drivers connect to all 3 phases BLDC motors. With functions of free stop and instantaneous CW / CCW rotation.
- Feature :
- Power input DC24V, current range up to 6A.
- With the functions of low speed flat torque, free stop, reset, and Internal/ External VR speed control.
- MCR-BL2406 designed with high efficiency PWM and Dead time protection. Therefore motor and driver operate in high efficiency and low dissipation.
Technical Specifications: |
P/N
|
MCR-BL2406A
|
Power Input
|
DC24V
|
Driving Current
|
6A (Max.) |
Motor Watts
|
＜150W |
Speed Control Range
|
50:1 |
Function
|
- CW/ CCW
- Free stop
- Brake
- Internal/ External speed control
- 60/ 120 Hall sensor selection.
|
Speed Setting
|
Int./Ext. (B20K Ohmic, 0~5V) speed control |
Input Signal
|
CW /CCW, RUN/ STOP,BRAKE |
Operating Temperature
|
-40
C to +85 C |
| Dimension/ Weight |
60(L)x108(W)x30(H)+1 mm / 150g |
APPLICATION AND INSTRUCTION |

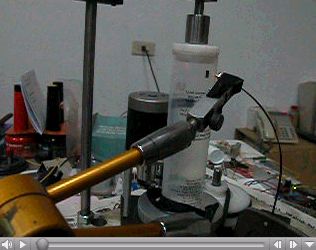

Cosmetic Industry Tube Sealing ( Movie file)
Press right side of mouse and save as file
Move download->

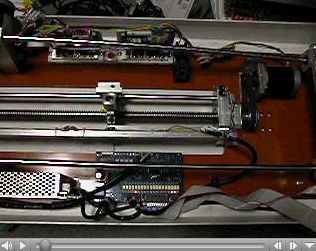

Ball Screw Devices( Movie file)
Press right side of mouse and save as file
Movie download->

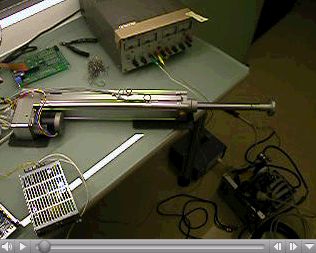

Medical Physical Rehabilitation Industry( Movie file)
Press right side of mouse and save as file
Movie download ->  |
|
