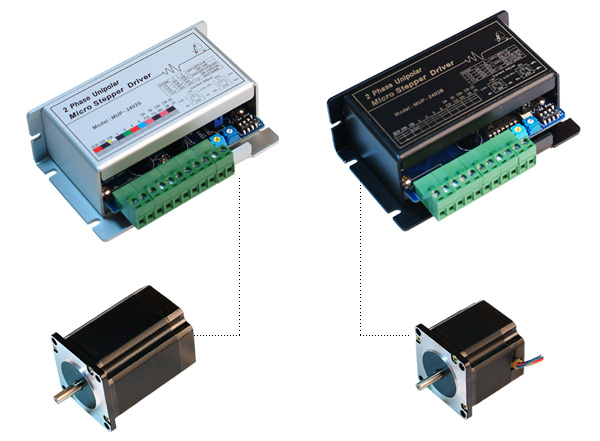

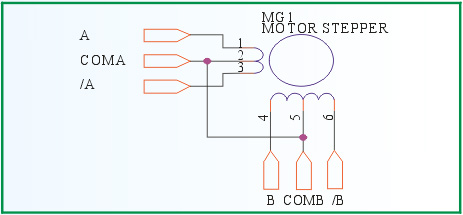

MCR-MUP2403S will fit to all kind of two-phase uni-polar stepper motor.

MCR-MUP2403B Micro-Stepping Motor Driver NTD$800 ea. (MOQ>=100PCS)

Features:
Supply Voltage range DC12V ~ 40V, Output Current maximum up to 3A.

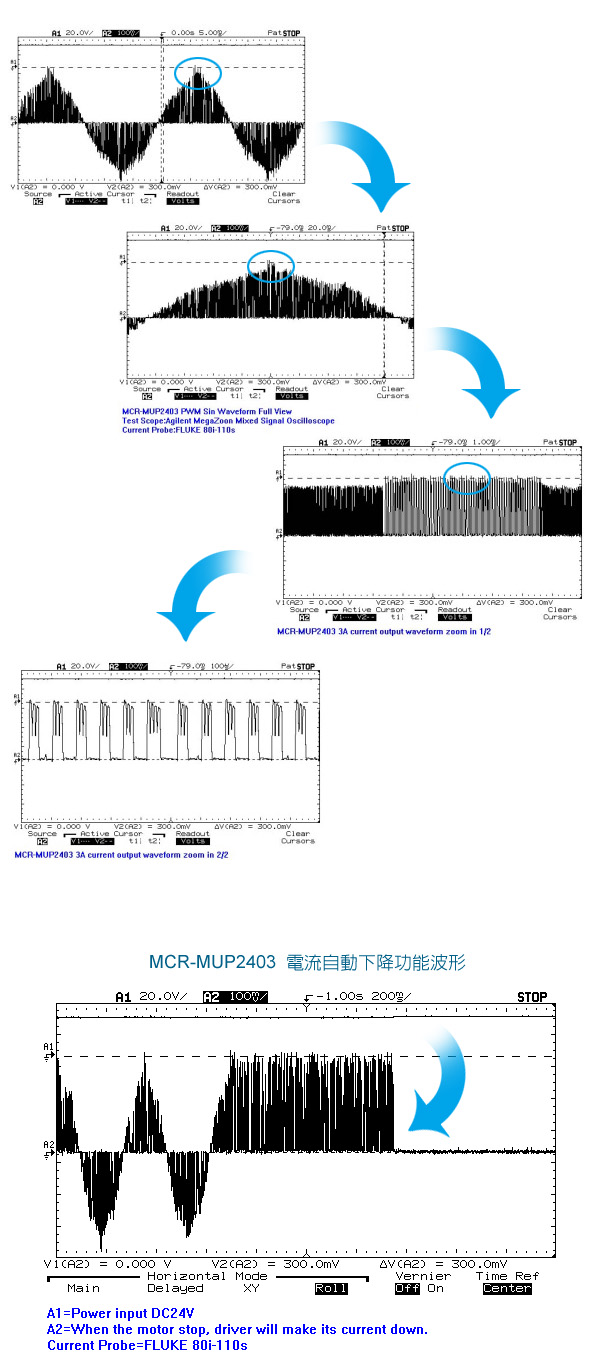

1. The driver provide complete control and pulse-width modulation (PWM) control of the output current Half-, quarter-, eighth-, and sixteenth-step operation are externally selectable .
2. Selectable current make stepper motor performance in high efficiency without rising temperature.
3. MUP2403S can hold motor in any 1/16 micro step position while motor stop..
4. When motor stop , MUP2403S holding current can adjustable.

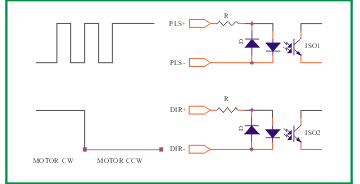

5. Control mode 1P/ 2P selectable.
6. Input frequency maximum up to 220KHz.
7. The MUP2403 include multi PWM channel core ,and low power dissipation.

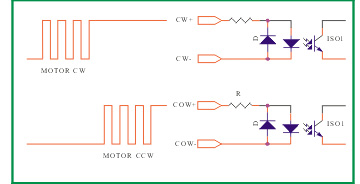

8. Input method in Photo-Coupler designed，interruption free and indicator for CW / CCW. Easy to operate, inspect and maintain.


• Optional(not Include in MUP-2403S)

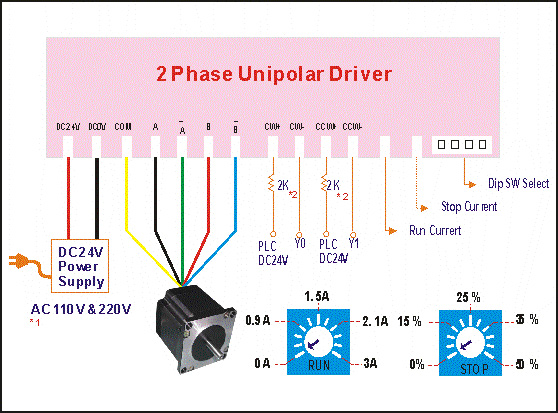

• Caution! When using PLC transister output，addational 2K resister is necessary toprotect driver input current else cause damage driver。
