SPECIFICATIONS
PRODUCT NAME / Model

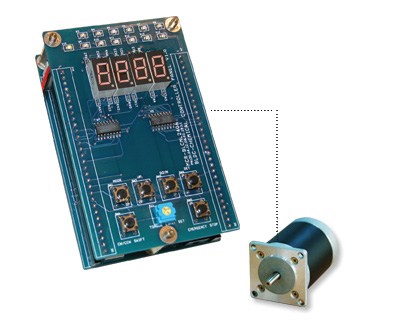

BLDC MOTOR DRIVERS with Pannel/MCR-BLCML2406
POWER INPUT
DC24V +_20% or DC12V(Made by order)
DRIVING CURRENT
6A (Max.)
MOTOR WATTS
<200W
SPEED CONTROL RANGE
50:1
OPERATION FUNCTIONS
Customized function designProgramming acceleration and deceleration timeMotor Swift CW/ CCW On board DIP switch x4 ,16 function selectorOutput disableIn time speed displayAlarm outputOverload detectionOverheat protection ≦70?CExternal emergency stopExternal reset inputMaximum torque output settingTorque output indicator CW/ CCW status indicatorOut of service alarm…
SPEED SETTING
External VR for speed control (20K Ohmic , 0 5V)
ACCELERATION / DECELERATION TIME Control by program
INPUT SIGNAL
Run/Stop, rotation direction, brake and ,reset all in automatic
OPERATING TEMP/ HUMIDITY
-40 C to +85 C
DIMENSIONS/ WEIGHT 95(H)x60(W)x38(D)+-1 mm / 170g (case excluded )


FEATURE:

Wide Speed Range and Constant Torque output panel display

Even with an available speed range of 50~25000 rpm, the motor maintains a constant torque. With panel display the motor speed and torque output as led indicator.Pioneer combine the driver and controller with panel display function all in one. Panel display can be selectable, such as the motor rotary speed or other function as required.Combine two piece top quality 4 layers in unique compact size driver.Offer the automatic control technology in total solution.Totally integrate drivers and controller together in low cost for customers' need.

  • Flat torque performance, cost effective, easy operation
  • Low noise. Motor keep low temperature after long time operation
  • Compact size, high efficiency, long lifetime.
  • Swift CW/ CCW direction change.
  • Customize function designed. (Note 1)



Tc. Mos Case Temperature( C)
Maximun Drain Current Vs.Case Temperature on Power Mos.

  • Please read it thoroughly to ensure safe operation.
  • Always keep the manual where it is readily available.
  • (Note 1):Customize automatic control by microcontroller, programming from Microrad Technologies designed as customers' requests in minimum purchase order.
  • 4 digital speed display
    4 digits,7-segment display all the information as customers' need

  • Button touch control
    MODE、UP、DOWN、SET、CW/CCW 、EMERGENCY STOP


  • J7 Connector 【External speed adjustment VR, 3 Pin 】
    1 -> External speed control terminal (+V)
    2 -> External speed control terminal(Wiper)
    3 -> External speed control terminal (GND)
    NOTE: Please use B20K VR ,Voltage adj. Range is DC0V~DC+5V。



  • R11 Peak Torque Setting VR
    For setting, press MODE and the display will show the peak torque percentage .

  • J8 Power Connector
    1 -> POWER INPUT DC +V (DC24V* DC12V is optional)
    2 -> POWER INPUT DC 0V (GND)

  • J11 Connector [ Motor, I/O signal connection, 8 Pin]
    Pos.
    Descriptions
    Driver
    Motor
    1
    Motor U phase
    (Blue) (Blue)
    2
    Motor V phase
    (White)
    (White)
    3
    Motor W phase
    (Brown)
    (Brown)
    4
    Hall Sensor Power H +
    (Orange)
    (Orange)
    5
    Hall Sensor Power H -
    (Black)
    (Black)
    6
    Hall Sensor, HU
    (Yellow)
    (Yellow)
    7
    Hall Sensor, HV
    (Grey)
    (Grey)
    8
    Hall Sensor, HW (Green) (Green)

  • S17 On board DIP switch x4
    On board DIP switch x4 ,16 function selector

OPP/CPP PACKING MACHINE:
OPP/CPP packing machine (semi-automatic) for DVD VCD CD
MCR-BLCML2406 fast deliver the film for the PP package of DVD、VCD、CD at exact position. Simply setup the speed and make the mechanical movement totally in control. Even thought the mechanic devices in age, MCR-BLCML2406 can detect the resistance and make them performance in the highest efficiency.

BALL SCREW & X-Y-Z TABLE:
MCR-BLCML2406 can be combined for X-Y-Z movement.
Application:Centering a Substrate, Pulling out Connectors, Driving a Pump Actuator Device, Fine Tuning A Nozzle, Focusing a CCD Camera, Silicon Wafer Pin Lifter, Pressing Applications , Wafer Transfer , Traveling Operation , X-Y Table , X-Y Stage , Positioning Application.

CHEMICAL INDUSTRY:
MCR-BLCML2406 controls the brushless motor in constant speed unidirectional or bidirectional, and instantaneous CW /CCW. Apply in chemical, biochemical and medical devices for laboratory. Easy fit it into the devices and the devices will be more compact and easy to carry.

FOOD INDUSTRY:
MCR-BLCML2406 with hi-tech CPU make brushless motor rotation rate up to 3000RPM or more that will be suitable application in food industry. No matter with low speed torque or instantaneous acceleration, MCR-BLCML2406 is the one for the industry. Application:Material Agitator , Arm Operation, Rotation of Camera, Operation of Large Index Table, Positioning on Index Table, Load Elevator, Open/Close Gate, Pushing Applications

HOME APPLICATION
MCR-BLCML2406 combined with brushless motor rotation in low noise applying to washing machine. Easy control the motor rotate direction and speed in external D/A signal. It also can apply to dryer machine and air condition. This application will save our energy and do not rise temperature through external voltage signal input and motor control by driver's PWM.

CUTTING MACHINES:
MCR-BLCML2406 combined with brushless motor could rotate instantaneous acceleration or fast cutting applying to clothing cutting machine. For the application MCR-BLCML2406 combine with controller will calculate the rotation distant, clothing cutting and reposition automatically by driver signal feedback. Combine with the function of constant speed and torque compensation. It also application on car waxing, low speed milling machine or automatic tool. Easy installation, compact size and easy operated. Application:Feeding Materials , Feeding at Regular Intervals, Open-Close Gate, Up and Down Operation, Printing Media , Cleaning Applications, Picking Applications, Pumping Applications

TOOTHPASTE / COSMETIC TUBE SEALING REPOSITION MACHINE
MCR-BLCML2406 combined with brushless motor could apply in sealing for tube , such as toothpaste, jam, cosmetic etc. Mark searching, automatic filling, and quickly position before tube sealing, MCR-BLCML2406 make these production line to be simple. Combine with the photosensor can quickly locate to mark within 0.7 sec per cycle,It is maintain free and very stable in machine without the shortage of stepper motor lost step status in the procedure of acceleration.

MCR-BLCML2406 produce under our strict inspection and quality control will be suitable operate with most of the 3 phase brushless motor. Free stop and instantaneous rotation protection. The above 8 application for all professional designer reference. Any question, please do not be hesitate to contact with us.
