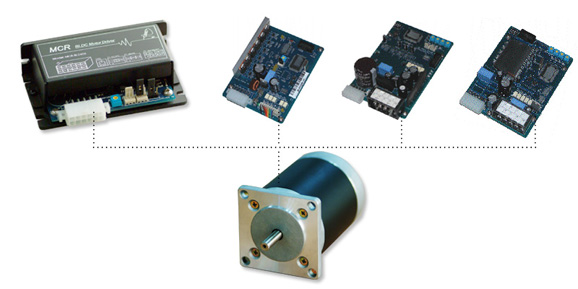

SPECIFICATIONS
PRODUCT NAME / Model
BLDC motor driver／MCR-BL2406B (V6.0)
POWER INPUT
 DC24V +_20% or DC12V(Made by Order)
DRIVING CURRENT
 6A (Max.)
MOTOR WATTS
 ＜150W
SPEED CONTROL RANGE
 50:1
OPERATION FUNCTIONS
  • Acceleration/Deceleration time setting separate
  • Motor Swift CW/ CCW
  • Internal / External speed control selection
  • Output disable
  • Hall IC 3 phases signal output◎ Instant torque PWM output
  • Alarm hold or not selectable ( Note 1)
  • Overload detection
  • 60° / 120°Hall Sensor position selection◎ Overheat protection
  • Motor overheat protection (Made by order)
  • External reset
SPEED SETTING
 Internal/ External VR for speed control (20K Ohmic , 0 5V)
ACCELERATION / DECELERATION TIME 0~5 seconds
INPUT SIGNAL
 Run/Stop, rotation direction, torque and instantaneous stops ,reset
OPERATING TEMP/ HUMIDITY
 -40 C to +85 C
DIMENSIONS/ WEIGHT 60(L)x108(W)x30(H)+1 mm / 180g
Note 1: The alarm signal output or not is selectable in occasional application , otherwise the temperature protection is still keep working.

FEATURE:
  • Flat torque performance, cost effective, easy operation
  • Low noise. Motor keep low temperature after long time operation
  • Compact size, high efficiency, long lifetime.
  • Swift CW/ CCW direction change.
  • Acceleration/ Deceleration time control aseparate.
  • Internal/ external speed control selection
  • Output 12 or 24 pulse per round from motor to exam calculation
  • 3 phase Hall sensor signal output for user controlled by PLC or CPU detect motor absolutely position



Tc. Mos Case Temperature( C)
Maximun Drain Current Vs.Case Temperature on Power Mos.

  • Please read it thoroughly to ensure safe operation.
  • Always keep the manual where it is readily available.
  • JP1 Jumper 【Setting the hall sensors position, 2 Pin?/font>j
    Short -＞120 Sensor position is at 120?
    Open-＞ 60 Sensor position is at 60
    NOTE：Wrong degree may cause damage!


  • J1 Connector 【External speed adjustment VR, 3 Pin 】
    1 -> External speed control terminal (+V)
    2 -> External speed control terminal（Wiper）
    3 -> External speed control terminal (GND)
    NOTE: Please use B20K VR ,Voltage adj. Range is DC0V~DC+5V。

  • J2 Connector 【Internal/ External speed control selection, 3 Pin 】
    1,2 Short -> Internal knob for motor speed adjustment
    2,3 Short -> External knob or voltage for motor speed adjustment.

  • J3 Power Connector
     1 -> POWER INPUT DC +V (DC24V* DC12V is optional)
    2 -> POWER INPUT DC 0V (GND)


  • J4 Connector [ Motor, I/O signal connection, 8 Pin
    Pos.
    Descriptions
    Driver
    Motor
    1
    		 Motor U phase
    		(Blue) (Blue)
    2
    		 Motor V phase
    		 (White)
    		 (White)
    3
    		 Motor W phase
    		 (Brown)
    		 (Brown)
    4
    		 Hall Sensor Power H +
    		 (Orange)
    		 (Orange)
    5
    		 Hall Sensor Power H -
    		 (Black)
    		 (Black)
    6
    		 Hall Sensor, HU
    		(Yellow)
    		 (Yellow)
    7
    		 Hall Sensor, HV
    		(Grey)
    		(Grey)
    8
    		 Hall Sensor, HW (Green) (Green)

  • J5 Connector [ I/O signal connection, 10 Pin]
    Pos.
    Descriptions
    Driver
    Note
    1
    		 CW /CCW CONTROL
    		 (Brown)

    2
    		 RUN /BRAKE INPUT
    		 (Red)

    3
    		 START /STOP OUTPUT CONTROL
    		(Orange)

    4
    		 Hall Sensor , HU signal output
    		 (Yellow)
    		 Only Signal output for user control by PLC or CPU detect motor absolutely position
    5
    		 Hall Sensor, HV signal output
    		 (Green)
    6
    		 Hall Sensor, HW signal output
    		 (Blue)
    7
    		 SPEED output
    		 (Violet)

    8
    		 Command GND
    		 (Black)

    9
    		 ALARM Output Open Collector C
    		 (Grey)
    		Notice the polar position.
    10
    		 ALARM Output Open Collector E (White)

  • J6 Motor Overheat Protect Connector (2PIN)
    1,2 -> Motor overheat protect connector, optional in motor manufactory.

  • J7 Reset/ Alarm Connector
    1,2 Short -> External Reset input
    1,2 Open -> Run Status
    2,3 Short -> Latch on fault, motor stop and output shut-down while drivers performance in abnormally .
    2,3 Open -> Not Latch on fault, motor keep running till drivers overheat while drivers performance in abnormally .

  • R6 Internal Speed Control VR
    Speed control range: 50RPM - 25,000 RPM

  • R7 Acceleration Time Setting VR
    Setting Range : Around 0-6 sec.

  • R8 Deceleration Time Setting VR
    Setting Range : Around 0-6 Sec.
APPLICATIONS：
OPP/CPP PACKING MACHINE:

OPP/CPP packing machine (semi-automatic) for DVD VCD CD
MCR-BL2406B fast deliver the film for the PP package of DVD、VCD、CD at exact position. Simply setup the speed and make the mechanical movement totally in control. Even thought the mechanic devices in age, MCR-BL2406B can detect the resistance and make them performance in the highest efficiency.
BALL SCREW & X-Y-Z TABLE:
MCR-BL2406B can be combined for X-Y-Z movement.
Application：Centering a Substrate, Pulling out Connectors, Driving a Pump Actuator Device, Fine Tuning A Nozzle, Focusing a CCD Camera, Silicon Wafer Pin Lifter, Pressing Applications , Wafer Transfer , Traveling Operation , X-Y Table , X-Y Stage , Positioning Application.
CHEMICAL INDUSTRY:
MCR-BL2406B controls the brushless motor in constant speed unidirectional or bidirectional. Apply in chemical, biochemical and medical devices for laboratory. Easy fit it into the devices and the devices will be more compact and easy to carry
FOOD INDUSTRY:
MCR-BL2406B with hi-tech CPU make brushless motor rotation rate up to 3000RPM or more that will be suitable application in food industry. No matter with low speed torque or instantaneous acceleration, MCR-BL2406B is the one for the industry. Application：Material Agitator , Arm Operation, Rotation of Camera, Operation of Large Index Table, Positioning on Index Table, Load Elevator, Open/Close Gate, Pushing Applications.
HOME APPLICATION
MCR-BL2406B combined with brushless motor rotation in low noise applying to washing machine. Easy control the motor rotate direction and speed in external D/A signal. It also can apply to dryer machine and air condition. This application will save our energy and do not rise temperature through external voltage signal input and motor control by driver's PWM.
CUTTING MACHINES:
MCR-BL2406B combined with brushless motor could rotate instantaneous acceleration or fast cutting applying to clothing cutting machine. For the application MCR-BL2406B combine with controller will calculate the rotation distant, clothing cutting and reposition automatically by driver signal feedback. Combine with the function of constant speed and torque compensation. It also application on car waxing, low speed milling machine or automatic tool. Easy installation, compact size and easy operated. Application：Feeding Materials , Feeding at Regular Intervals, Open-Close Gate, Up and Down Operation, Printing Media , Cleaning Applications, Picking Applications, Pumping Applications.
TOOTHPASTE / COSMETIC TUBE SEALING REPOSITION MACHINE
MCR-BL2406B combined with brushless motor could apply in sealing for tube , such as toothpaste, jam, cosmetic etc. Mark searching, automatic filling, and quickly position before tube sealing, MCR-BL2406B make these production line to be simple. Combine with the photosensor can quickly locate to mark within 0.7 sec per cycle,It is maintain free and very stable in machine without the shortage of stepper motor lost step status in the procedure of acceleration.

MCR-BL2406B produce under our strict inspection and quality control will be suitable operate with most of the 3 phase brushless motor. Free stop and instantaneous rotation protection. The above 8 application for all professional designer reference. Any question, please do not be hesitate to contact with us.
